| DREAM’S PERFORMANCE is created in mind
To fulfill enthusiast’s dreams to own a hi-performance suspension system coupled with the best quality and highest performance long service life achieved and to also acquire a world class base of DREAM’S PERFORMANCE products users
We, DREAM’S PERFORMANCE have been engaging a lot of effort and time into R&D, innovating and enhancing our performance suspension line-up. We hope to develop more high performance products I the coming years and we really hope that we can fulfill all motorsport enthusiast’s dream of a performance suspension with oem life span. |
| |
| |
| |
| |
| |
|
 |
| |
| DREAM'S PERFORMANCE SUSPENSION COILOVER |
| |
 |
TYPE I is a fully adjustable coilover designed & engineered for street & race performance usage
• Mono-tube design with gas and oil separated
• 40 level damping adjustable for precise setting
• Camber adjustable
• Length adjustable
• Spring pre-load adjustable
• Large inter diameter cylinder design for shock-absorbing action at any ambient temperature and longer life span
• Oversize piston
• Dyno-tested and race proven
• 1 year warranty |
|
| |
 |
| |
 |
TYPE II is a 2 way adjustable and highest level competition suspension model for extensive circuit application
• Mono-tube design with gas and oil separated
• Separately compression and rebound adjustment with 40 points
compression and 16 point rebound adjustment for precise setting
• Higher spring rates and firmer valving
• External reservoir to increased fluid capacity for better heat control in
race condition
• Camber adjustable
• Length adjustable
• Spring pre-load adjustable
• Large inter diameter cylinder design for shock-absorbing action at any
ambient temperature and longer life span
• Oversize piston
• Dyno-tested and race proven
• 1 year warranty |
|
| |
MORE INFO
• 40 level damping setting-full length adjustment-spring pre-load adjustment -camber adjustment
(check our application list)
• Mono-tube design with gas and oil separated
• High pressure nitrogen gas to keep inter pressure stable
• Large Inter diameter (efficient shock-absorbing at ambient temperature)
• Rubber gasket designed for insulate noise
• Lightweight design Forged 6061 aluminum camber plate
• Harden Aluminum lower bracket lightweight design and can also withstand extensive abuse
• Fully anodized(top pillow mount-lower mount bracket-treaded shock body-spring seat)
• SAE9254 Spring (Low deformation)
• Forged Piston
• S45C piston rod
• Teflon coated piston ring
• Heat resisting O’ring and oil seal specially design to reduce fluid leaking and longer life span
• Specially design stretched oils bearing to provide precise steering control
• All DREAM’S performance suspension are dyno-tested and quality control with international standard
• All DREAM’S performance suspension are entitle with 1 year limited warranty |
| |

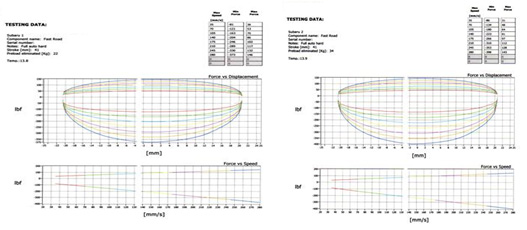

DYNO INFO
The dyno test report of our damper changes is enclosed for your reference, as you can see the 8 dyno lines on the report for damper adjustment data shown and the stability performance from low speed to high speed. |
| |
 |
| |
| |
|
